Domotic systems allow us to make our lives easier in our homes we save energy, this device allows you to automate processes locally or remotely, such as lowering the blinds at night, turn the lights on or off when we are not at home and close Gas passage Or water.
The load controller is the ideal solution for the control of housing installations and small commercial buildings. It is based on wireless Ethernet, Wifi or Bluetooth communication and is suitable for both new and built homes. It facilitates the automatic integration of lighting control equipment, shutters and auxiliary ebm equipment.

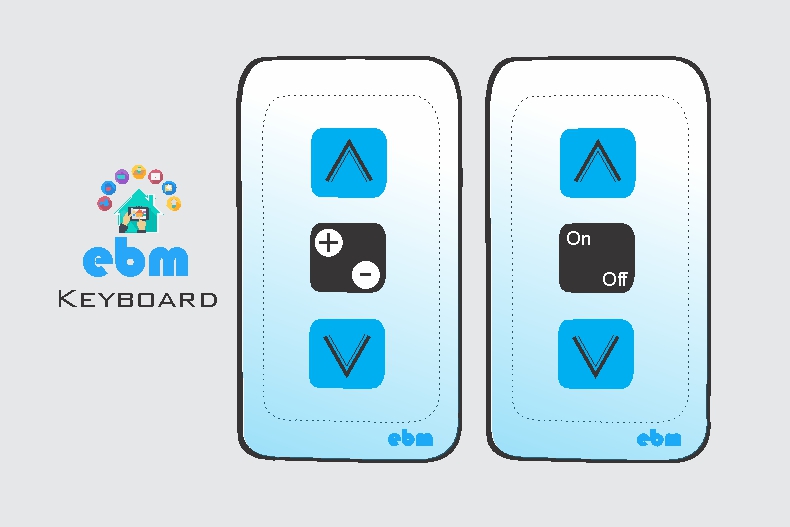

Keyboard
The keyboard allows up to four devices such as: Luminaires, curtains, sensors or actuators, its method of communication is Wifi or Bluetooth, power is 120VAC and can be embedded in the wall with a box of 5,800.
Technical specifications
-Communication: Wifi or Bluetooth
-Groups of operation: 4
Operation: Capacitive Touch (+/-) (ON / OFF)
Power supply: 90 - 240VAC / 0.5A.
Operating temperature: 0ºC - 85ºC
Optical motion sensor, gas sensor, RGB Smart LED

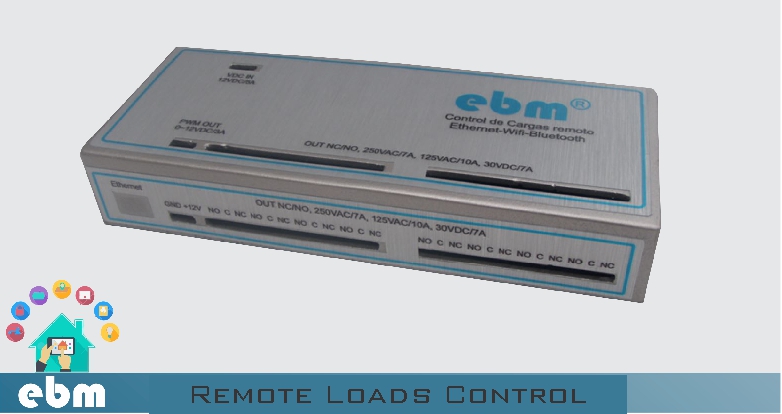

Remote Loads Control
The control of loads is controlled through a simple application for Tablet, Smartphone or PC, Android applications and Windows.
This device can not be found in two versions, one for the control of four loads another for the handling of eight loads, in the two versions can have a PWM output for the handling of motors, lamps and other devices that require it.
Technical specifications
-Communication: Wifi, Ethernet or Bluetooth
Relay outputs: 4 or 8
-Output Type: NC, C, NO
-Voltage / Current Supported: 250VAC / 7A, 125VAC / 10A, 30VDC / 7A
- PWM Output: 12VDC / 3A, 0-100%, 500Hz.
- Power supply: 12VDC / 5A.
-Operating temperature: 0 ° C - 50 ° C.
